Multi axle low flat bed trailer

Multi axle low flat bed trailer 40-100tons payload lowbed semi trailers hydraulic low bed container trailer

TITAN VEHICEL ,being the leading in the trailer industry, we offer quality assured range of LowBed Trailers which are quality assured and are abrasion resistant. Our entire range of lowloaders are made up of top-grade base material HG60 High Strength Steel Material. These LowBed Trailers are sturdy in construction and is delivered in well-defined time frame.

Our 5 axle lowbed is generally used for carrying 100~120 Tons capacity loads. These 5 axle lowbed can be both platform and pool type and we have a flexibility on the specifications. We have different options to solve your load problem. With our technical team we can manufacture high quality 5 axle lowbed.

The total length : 15800~16000 mm varies according to demand.

Total Width: 2550 mm – 3300 mm varies according to demand.

Optional - TITAN 100 Ton Lowbed Trailer 5 Axles

Hydraulic ramp is an option for loading and unloading
Air suspension or Bogie suspension
Self Steering or hydraulic steering axles
Side bracket is an optional for increasing overall width
Detachable gooseneck is an option.

Paint - TITAN 100 Ton Lowbed Trailer 5 Axles

First ,Sandblasting for tank ,then anti-rust chassis surface, one layer anti-corrosive primer, two layers of top coats; Our paint is polyurethane paint, it has a strong paint film, full gloss, strong adhesion, water resistance, wear resistance, corrosion resistance.We can guarantee that the paint is not removing 6~7 years .

Main specification - TITAN 100 Ton Lowbed Trailer 5 Axles

Brand: TITAN 100 Ton Lowbed Trailer 5 Axles

Overall dimension: 16000mm X 2500mm X 2200mm

Loading capacity: 100 ton

Axle: 5 axles

Suspension: Heavy duty mechanical spring suspension

Tire: 20 units

Landing gear: JOST

Brake system: WABCO

King pin: 90#

Electical system: 24V, LED lights

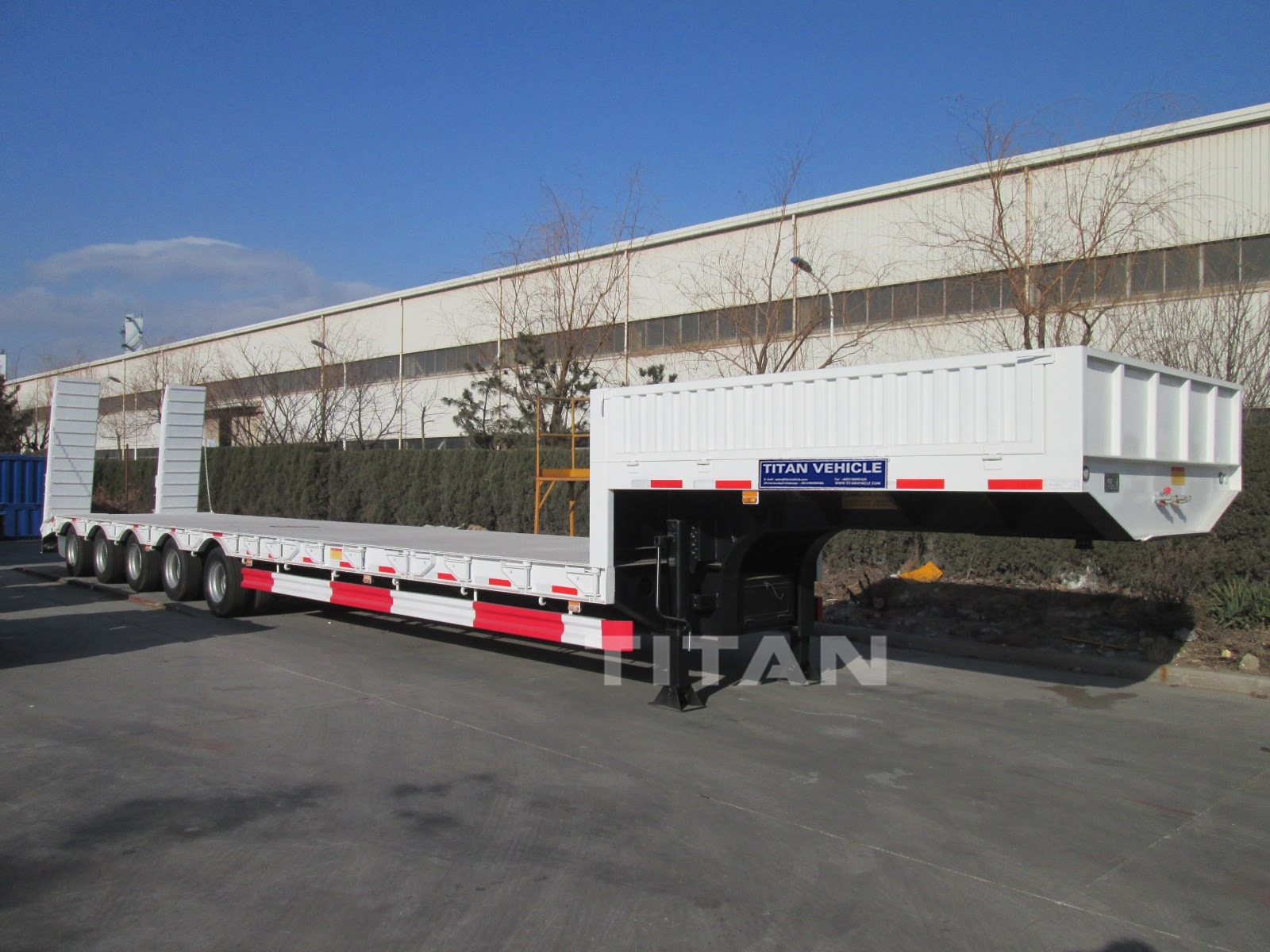

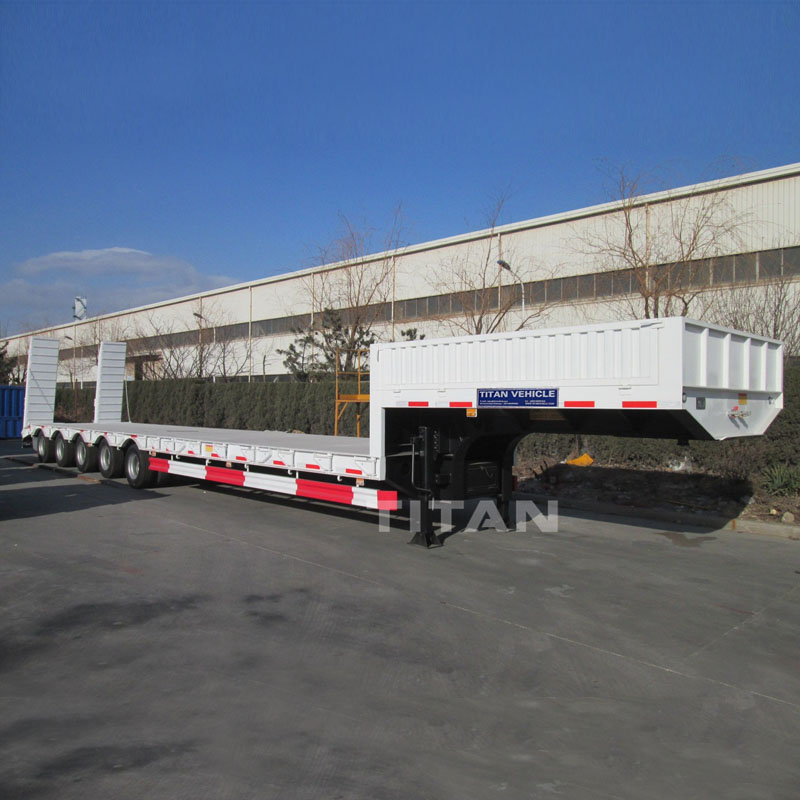

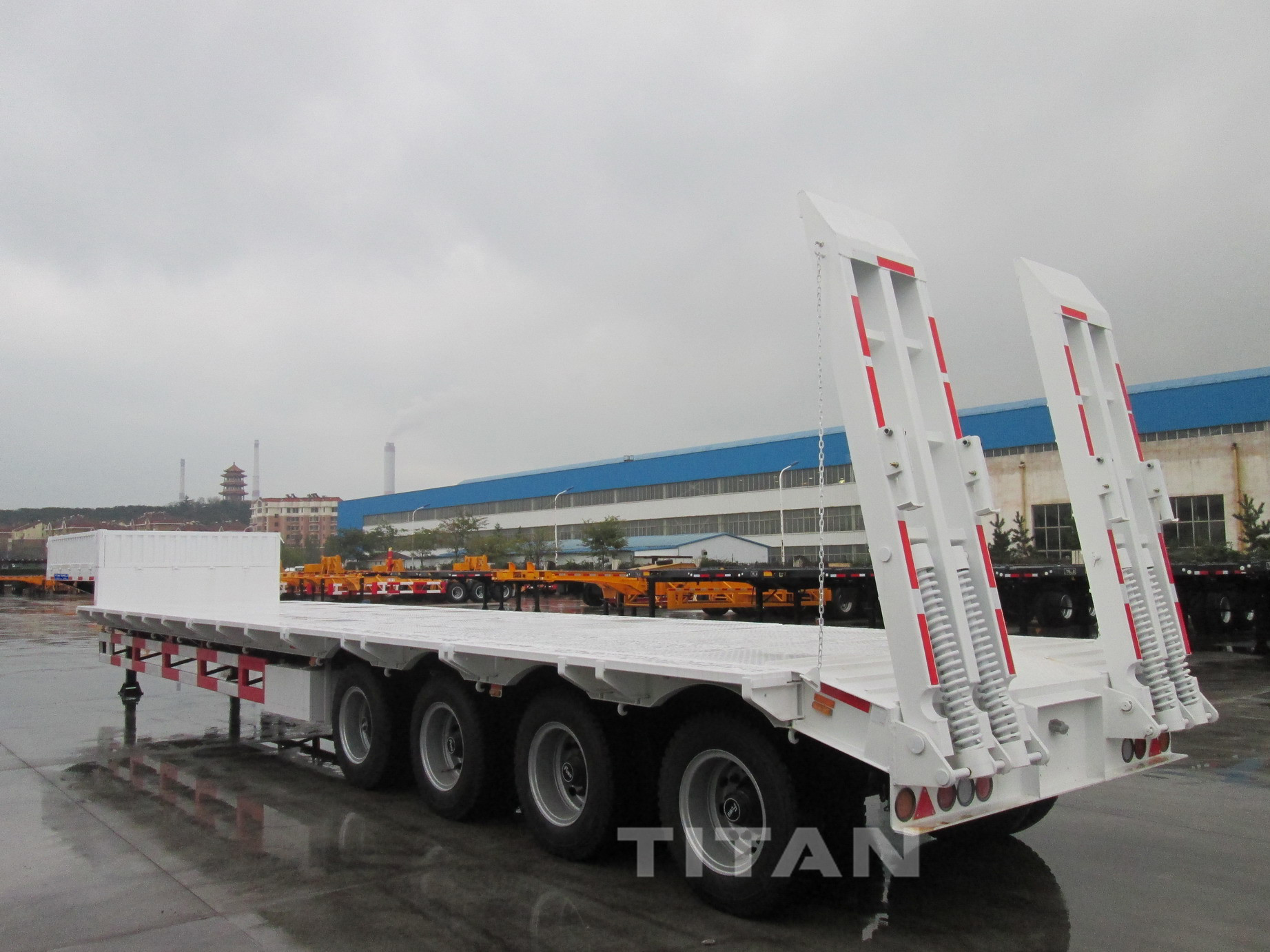

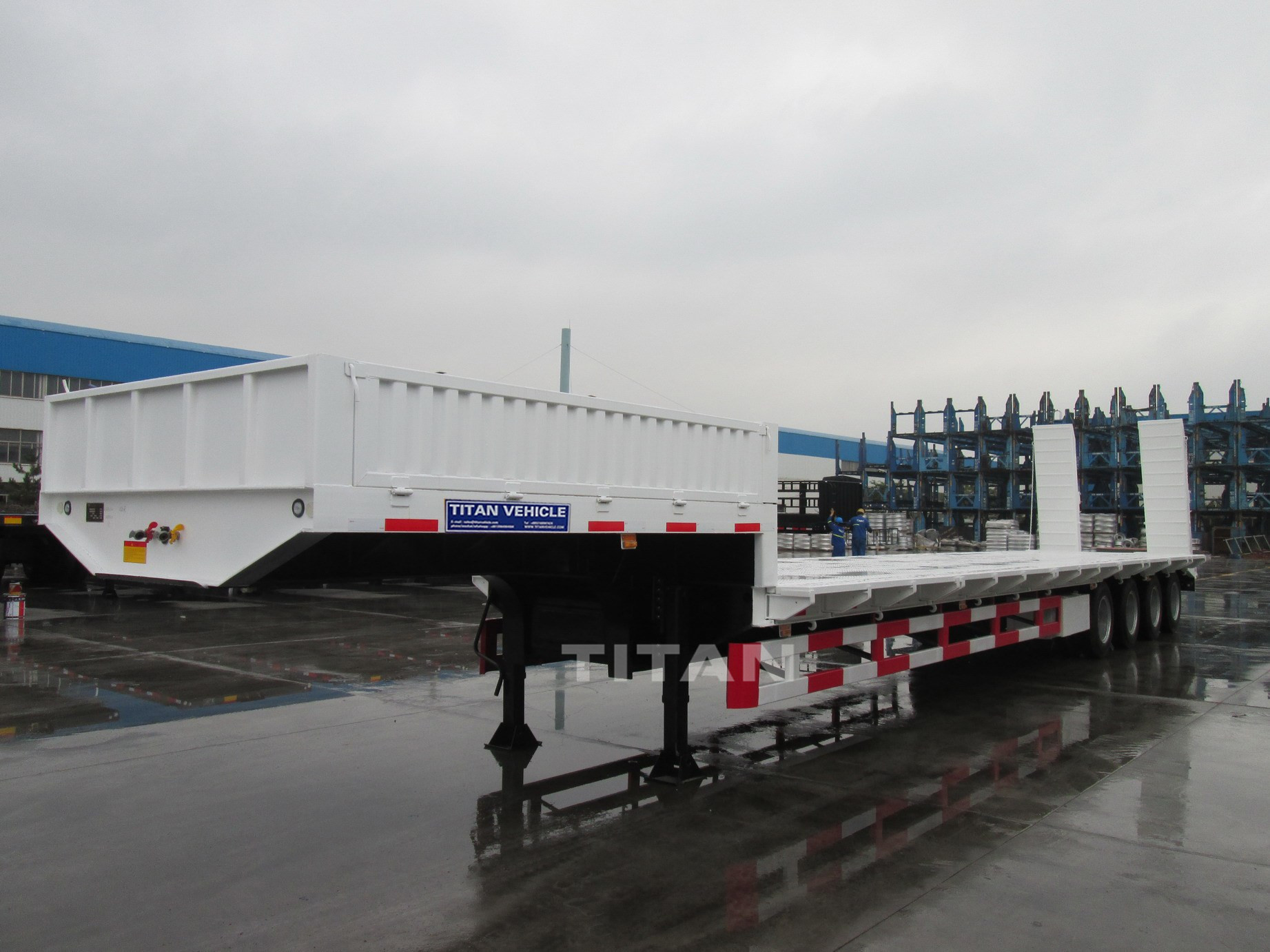

Details of TITAN Lowbed Trailer 4 axle 5 Axles lowbed
