Tipping container semi trailer tipper container tipping flatbed trailer
TITAN produces Tipping Flatbed Trailer for standard 20ft 40ft Containers.TITAN Tipping Container trailer are commonly available in 20ft or 40ft, which is suitable for standard 20ft or 40ft container,Customers can decide on suitable Tipping Angle, Tipping Speed and Carrying Capacity, Whether it be for on-road or off-road applications.
Advantages of Tipping Flatbed Trailer
FuWA axle 2 / 3
deadweight light
Novel design
Low center of gravity
Free accessories
High cost-effective
Customized of Tipping Flatbed Trailer
For different color
shape U type / Square type / container flatbed dump
capacity 30 ton - 100 ton
Single action or Linkage landing leg
Mechanical suspension or air suspension
any type of container tipper trailer
Specification of Tipping Flatbed Trailer
Dimension:11280*2500*3972mm(outside) 10330*2330*1700mm (work space )
Tare weight:About 15600KGS
Total Volume(m3):37 m³ or less than 80tons
Bottom plate thickness(mm):5mm-8mm /Q235 steel or can be optional
Lifting system:Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Main Beams:Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle:3 axles, 13T/16T, FUWA/BPW/ Brand
Landing Gear:JOST (D200T)or China Brand 28Tons
King Pin:JOST 2.00 or 3.5 inch bolt-in king pin or Welding type
Suspension:Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand)

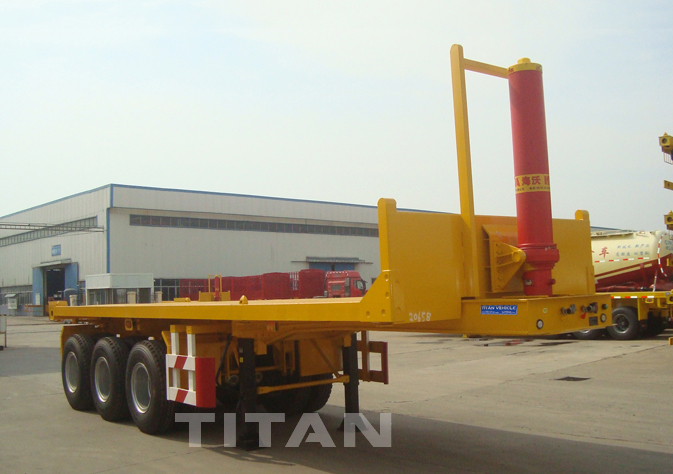

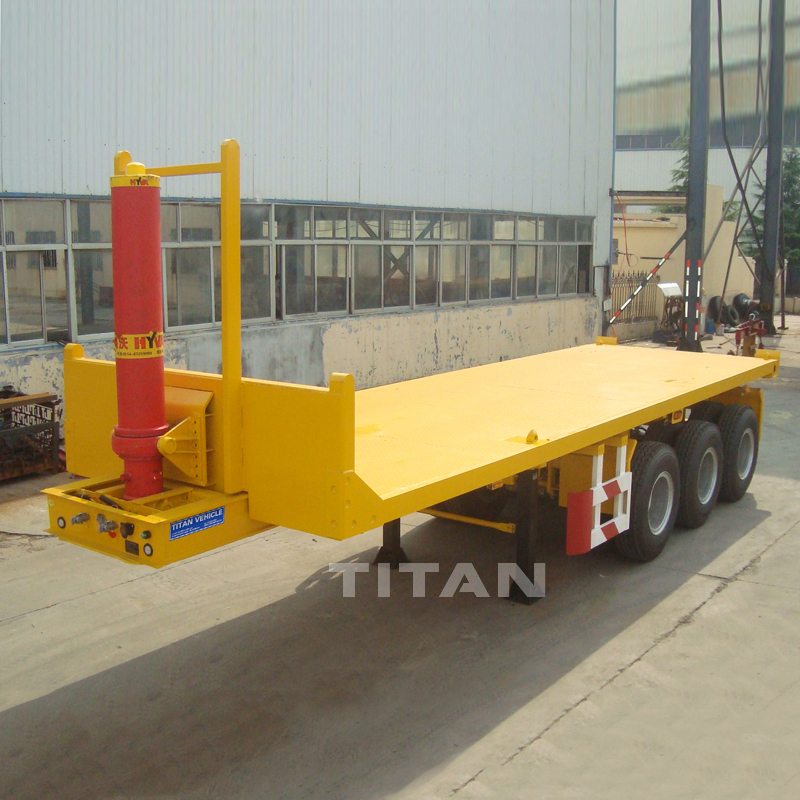

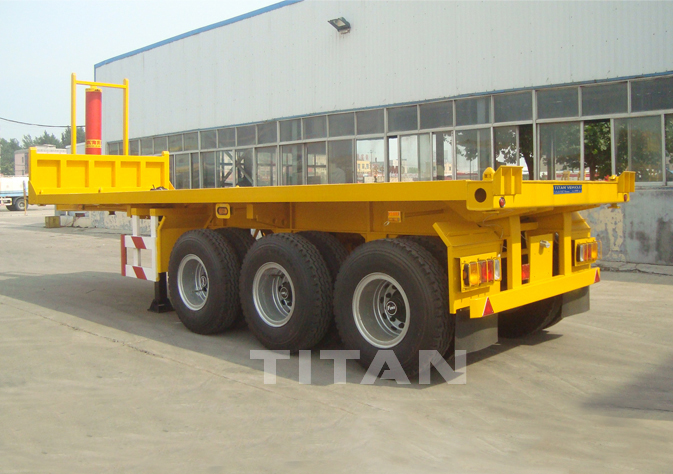

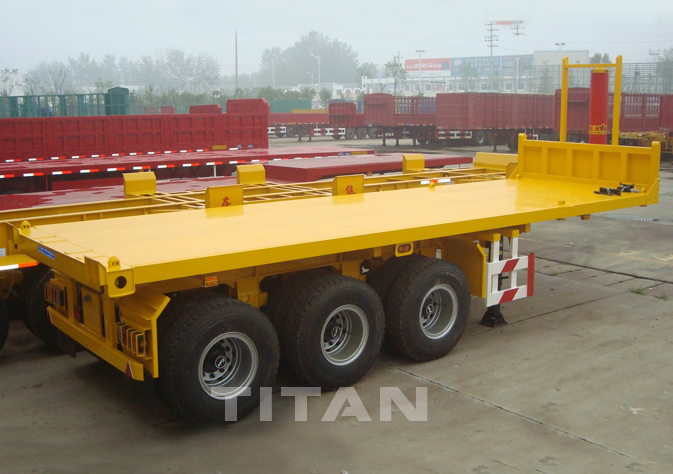

Products display of tipping container semi trailer
If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!
We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !
Orders for ready-made or custom-made trailers are welcome!
