Chapter 1: TITAN fence cargo semi trailer
Chapter 2. About fence cargo semi trailer
The fence cargo semi trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The stake semi trailer can be added with a container turn lock to transport the container.
Livestock stake fence trailer has a fence structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.
Through the video below, you can learn about different types of fence semi trailers(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer)
And the process, testing, packaging and customer feedback, etc.

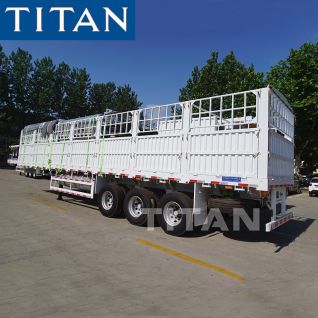

3 axle 60 tons fence cargo semi trailer

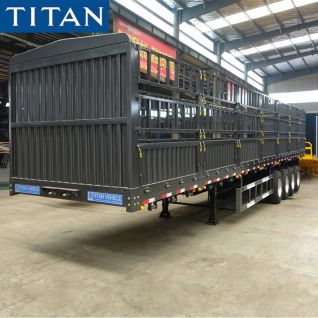

4 axle cargo transport fence semi trailer

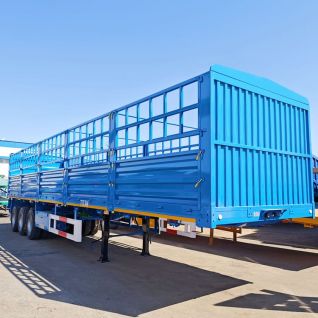

Most popular 3 axle 60 ton fence cargo semi trailer
Overall dimension: 12500mm*2500mm*3500mm(2000mm sidewall)
Loading capacity: 50-60ton
Material: Q345B Steel
Suspension：Heavy duty mechanical spring suspension
Bottom Platform: 3mm-thick checkered plate
Brake system: WABCO
Electrical system: 24V, LED lights
TITAN 3 axle fence cargo semi trailer drawing
More Technical Parameter Drawings
Technical drawing of TITAN 3 axle fence trailer
3 axle fence cargo semi trailer technical specification drawing
Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer needs to be composed.
Some customers are bulk freighter or ro-ro ships. TITAN cargo trailer for sale will spray wax and cover the tarpaulin when the side wall trailer use bulk freighter.
Package of TITAN livestock trailer
1> Fence full trailer is the front end of the fence full trailer connected to the rear end of the tractor. The tractor only provides a pulling force and does not bear weight. That is, a full trailer is added behind the ordinary car, and the two are connected by a hook. The trailer can increase the loading capacity of the truck and reduce fuel consumption, thereby reducing transportation costs.
With respect to the car body, the tow bar or tow frame of the trailer can swing up and down or left and right. It is also used in mountainous areas or on bad roads.
2> Fence semi-trailer is a type of trailer whose axle is located behind the center of gravity of the animal transport trailer. The semi-trailer is equipped with a coupling device that can transmit horizontal or vertical forces to the tractor truck. It doesn’t have itself power, Part of the total weight of the trailer is borne by the tractor truck.
The use of fence semi trailer is very wide. With the strong carrying capacity and large loading capacity of semi-trailers, one truck can load three times the goods of ordinary trucks. Compared with other ordinary Bulk cargo transport trailer, Bulk cargo transport trailer can bring more economic income.
Fence drawbar trailer VS livestock fence trailer
Livestock fence trailer come in different types. Each of the different designs is made to serve a specific function. You can choose among these different types based on your need. Here are some of the livestock trailer you will find out there in the market. According to the shape, we can be divided into fence semi trailer, van trailer.
Fence semi trailer
The fence type is a cheap and light construction compared to other livestock trailers that you will ever come across out there in the market. It is designed and built in such a way that it is easy to clean, which is a very important aspect to consider during your purchase.
This type of fences trailer is TITAN most commonly sold model and exported to Sudan, Nigeria, Zambia, Senegal, etc.
the loading capacity of the fences trailer is larger. Due to its breathability, the range of the cargo that can be pulled is also wider than that of the van trailer. It is also more convenient in loading and unloading than the van trailer.
At present, the most common bulk cargo trailer in daily life is the fences trailer that pulls vegetables. because of the good air permeability of the fence semi trailer, if it is a sealed environment, in the summer, the cargo is easily damaged.
Van semi trailer
The Van type is designed and made in a way that keeps the cabin temperature stable. This is the type of livestock trailer that you need when transporting animals that need close care and attention especially on the ambient conditions off transportation.
It helps in keeping the animals healthy and free from any illness. This is the type of livestock trailer to use if you are dealing with and transporting for high-profit animals.
3 axle fence semi trailer VS van semi trailer
1). The stake semi trailer model and fence structure design process are combined with the user's cargo category, reasonable design, to fully reduce the weight of the carriage under load conditions, the structure is simple and applicable, and bulk cargo semi trailer is convenient to disassemble, reduce investment costs for users, and create more profit value.
2). The livestock trailer frame adopts a space frame structure formed by welding longitudinal beams and integral through cross beams. It can balance the strength, rigidity, and toughness of the frame, with strong bearing capacity and no deformation.
3). Reduce tire wear and fuel consumption. Under the same road conditions and load capacity, fuel consumption per 100 kilometers can be reduced by more than 1.2 liters.
4). Imported brake pads and implanted wear alarm device. Effectively guarantee the braking performance of the vehicle during operation.
5). The service life of the TITAN bulk cargo transport trailer brake can reach 1.5 million kilometers in 10 years. Brake discs containing alloy elements, anti-cracking, anti-wear and high temperature resistance.
Details of bulk cargo trailers for sale
Fence semi trailer develop on the basis of a container flatbed trailers and side wall trailer. The stake trailer has a fence structure design.Mainly used for transportation of agricultural and sideline products and other bulk cargo.
The fence cargo trailer can be added with a container lock to transport the container.
Bulk cargo transport trailer for sale
The common structure of the fence semi trailer is divided into four types according to the axle: 2 axles 40ft Poultry Semi Trailer, 3 axles 13 meters Bulk cargo transport trailer, 4 axles 15 meters sugar cane trailer, and the multi-purpose livestock trailer. And load capacity has 30/40/60/80/100 tons for your choice.
When transporting sugar cane trailer, many customers use container transportation, which has low transportation cost and short transportation time. But the bad thing is that the rear of the fence semi trailer needs to be composed.
Some customers are bulk carriers or ro-ro ships. TITAN sugar cane trailer will spray wax and cover the tarpaulin when the cargo ship is bulking.
Package of Bulk cargo transport trailer
How to know the quality of a warehouse trailer? The easiest way is to look at the weight of the stake trailer. The heavier the weight of cargo trailers for sale, the better the quality. The 3 axle cargo trailer purchased by African customers self weighs is 8.5 tons. If the weight is only 7.5 tons, the cost of this fence cargo trailer can save more than 1,000 dollars.
Here are a few more important points:
1. Main beam.
Sugar cane trailer main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a cargo trailer is 14/8/16 mm. The steel plate in the middle of the beam uses Q345B manganese steel, the thickness is 8mm. Many unreliable suppliers will use 6mm main beam to save costs. But the carrying capacity was reduced by 26%.
The international standard thickness of the middle part of the beam must be 8mm.
2. Bottom Floor.
Many cargo trailers for sale are also used to transport bulk cargo and other items. The bottom plate of the Titan fence drop side trailer passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate. Cost can be reduced by $ 700.
3. Side door.
The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure.
The door frame is a 40x60mm rectangular steel tube.

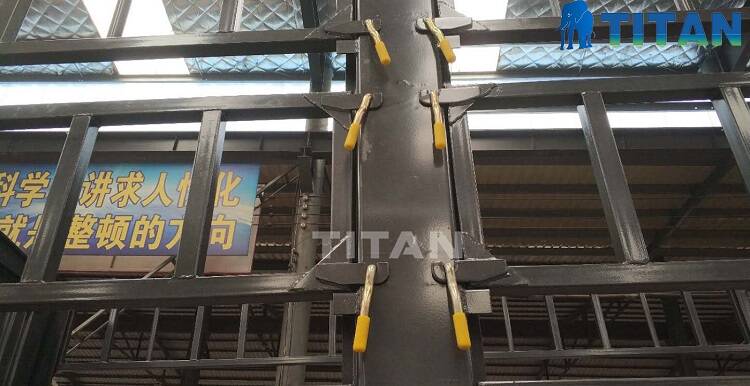

4. Stake style.
The overall height of the fence cargo trailer, the overall height of the stake trailer is 1.6 meters, 1.8 meters, 2 meters. You can customize the height and style of the fences trailer.
The axles of Bulk cargo transport trailer for sale are divided into three types: 13-ton axles, 13-ton axles + 16-ton brake system axles, 16-ton axles,
The axle of the TITAN fence drop side trailer is a 13-ton axle + 16-ton brake system axle, which has better braking performance and shortens the braking distance by more than 5 meters.
The 3 axle livestock trailer uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.
TITAN trailer stakes uses custom made tires in a tire factory., wear-resistant tires. On Chinese highways, TITAN Bulk cargo transport trailer tires can reach more than 300,000 kilometers.
7. Suspension of livestock trailer
TITAN livestock trailer suspension adopts special high-strength steel. 6mm thickness. Center pin diameter is 70mm.
Stronger than suspensions in many factories.
