TITAN 2 axle 50 tons low loader trailers sale use a push-down forehead to ensure that the forehead does not tilt when carrying heavy objects.The 50 tons low loader trailers sale side support thickness is 6mm, and the side support distance is no more than 500mm. The 50 ton low loader trailer side brackets firmly connect the main beam and side beams to improve the load-bearing capacity of the vehicle.
50 Tons low loader trailers sale insists on using Q460c to produce the main beam, which makes the used low loader trailer more sturdy and durable.

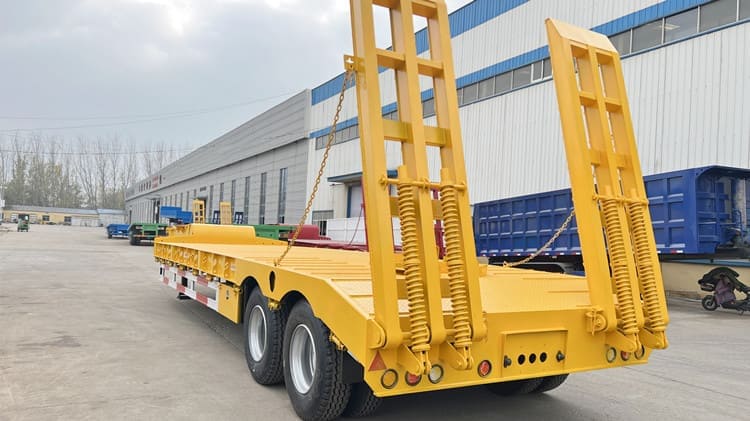

50 Ton low loader trailer adopt high elasticity double spring ladder, ordinary people can operate it with one hand, which is simpler and more convenient.
The used low loader trailer side beam is 300mm height, adopt T700 high strength steel
TITAN used low loader trailer suspension width is 120mm, thickness is 10mm, and kingpin use 70mm. Ensure the 50 ton low loader trailer have high loading capacity
Overall dimension: 11700mm*2500mm*1700mm
Loading capacity(T): 40T
Axle: 13T/16T, TITAN Brand
Rim: 8.0-20
Tire: 12R22.5
Suspension: Mechanical suspension
Ramp: Spring ramp
Valve: WABCO valve
