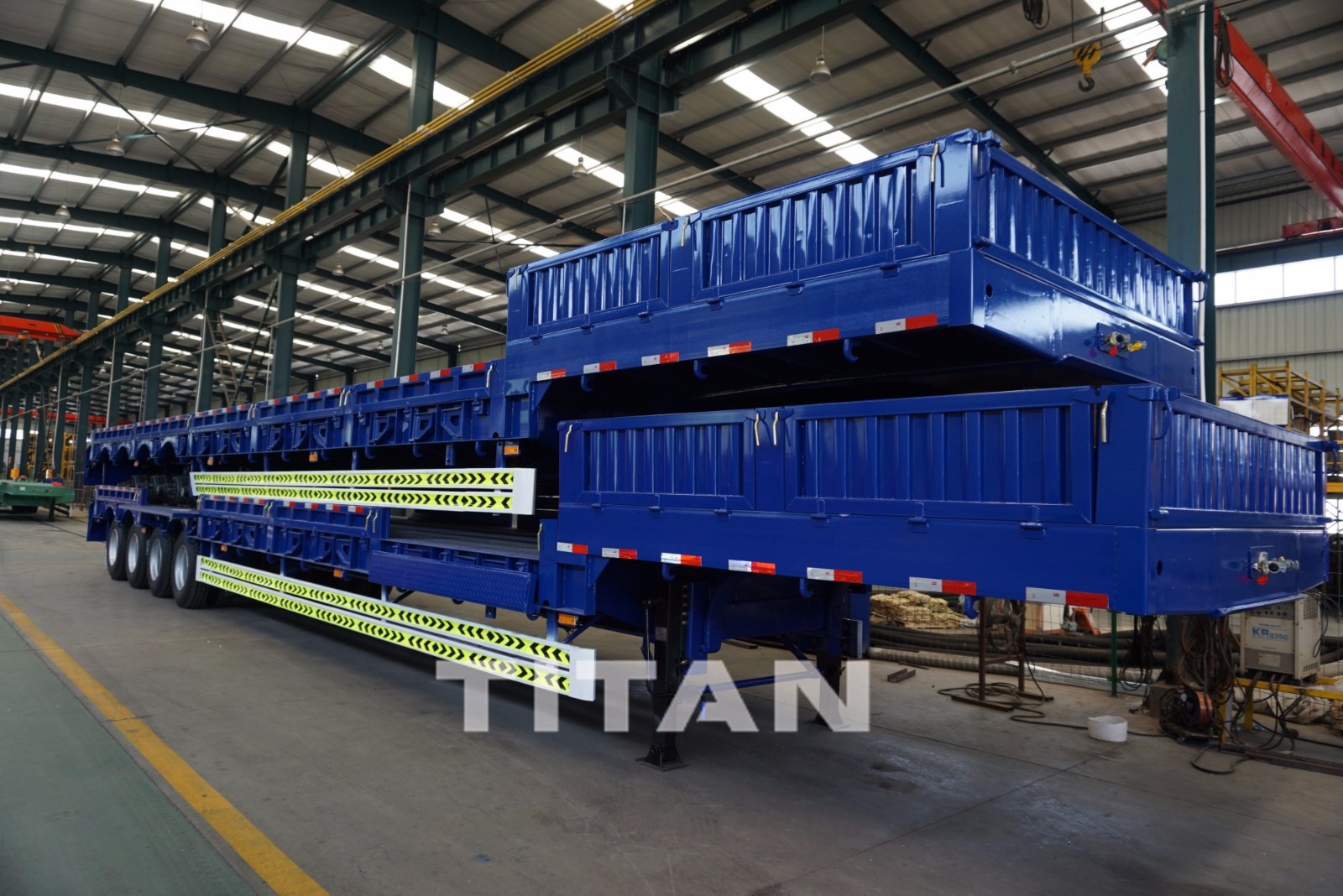

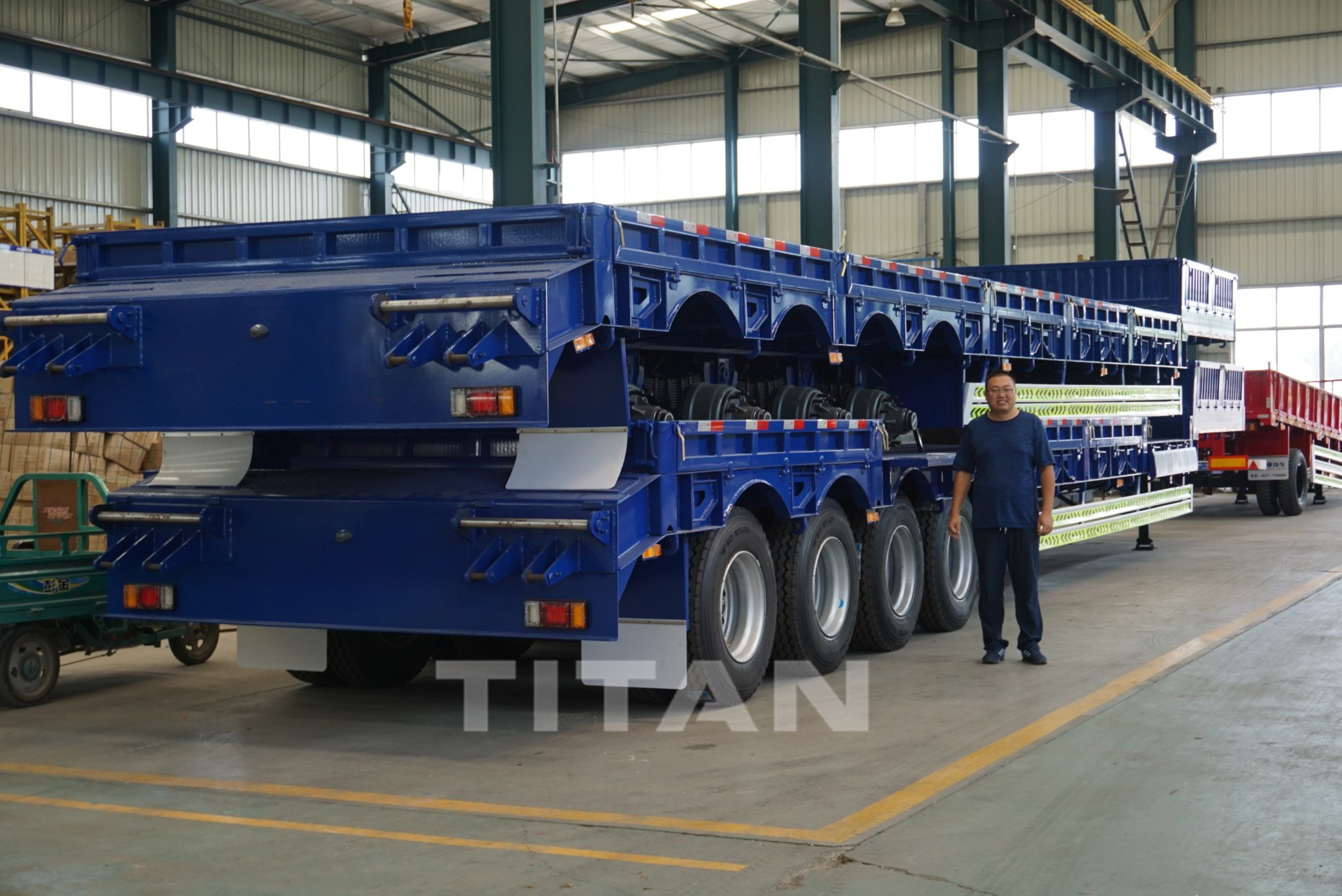

Heavy duty semi low bed trailer with side wall
Our semi lowbed with side wall is generally used for carrying 100~120 Tons capacity loads. These 4 axle lowbed can be both platform and pool type and we have a flexibility on the specifications. We have different options to solve your load problem. With our technical team we can manufacture high quality 4 axle lowbed.
The total length : 15800~16000 mm varies according to demand.
Total Width: 2550 mm – 3300 mm varies according to demand.
Optional :
Hydraulic ramp is an option for loading and unloading
Air suspension or Bogie suspension
Self Steering or hydraulic steering axles
Side bracket is an optional for increasing overall width
Detachable gooseneck is an option.
Paint :
First ,Sandblasting for tank ,then anti-rust chassis surface, one layer anti-corrosive primer, two layers of top coats; Our paint is polyurethane paint, it has a strong paint film, full gloss, strong adhesion, water resistance, wear resistance, corrosion resistance.We can guarantee that the paint is not removing 6~7 years .
Main specification - TITAN 100 Ton Lowbed Trailer 4 Axles
Brand: 100 Ton Lowbed Trailer with side wall
Overall dimension: 16000mm X 2500mm X 2200mm
Loading capacity: 100 ton
Axle: 4 axles
Suspension: Heavy duty mechanical spring suspension
Tire: 16units
Landing gear: JOST
Brake system: WABCO
King pin: 90#
Electical system: 24V, LED lights
