62m Telescopic Trailer for Windmill Blade
62m Telescopic Trailer for Windmill Blade

62m Telescopic Trailer for Windmill Blade

62m Telescopic Trailer for Windmill Blade Transport could reach Max.62m length. the maximum can transport windmill blades within 80 meters.

62m Telescopic Trailer for Windmill Blade Description:

The telescopic trailer for windmill blade transport could have three and four telescoping beams, and it could reach Max.62m length. the maximum can transport windmill blades within 80 meters. At the closed length of the telescopic trailer, it could use as a flatbed trailer.

The suspension of the telescopic trailer adopts mechanical suspension, the mechanical suspension can accept overload. it could be air suspension and mechanical suspension. the air suspension is the balance ability cause it has automatic lifting distance.

The Telescopic Trailer for Windmill Blade could have three steering modes. One is Automatic steering ( at short length), one is Remote control steering and the last one is the Manual operation steering.

For the windmill blade transporters, not only the Extendable flatbed trailer, but also we have extendable hydraulic modular trailer, Windmill blade adapter, and Windmill Tower Adapter.

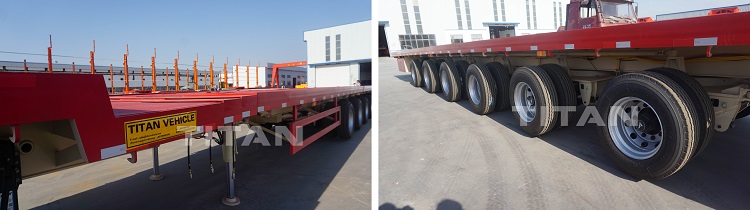

62m Telescopic Trailer for Windmill Blade

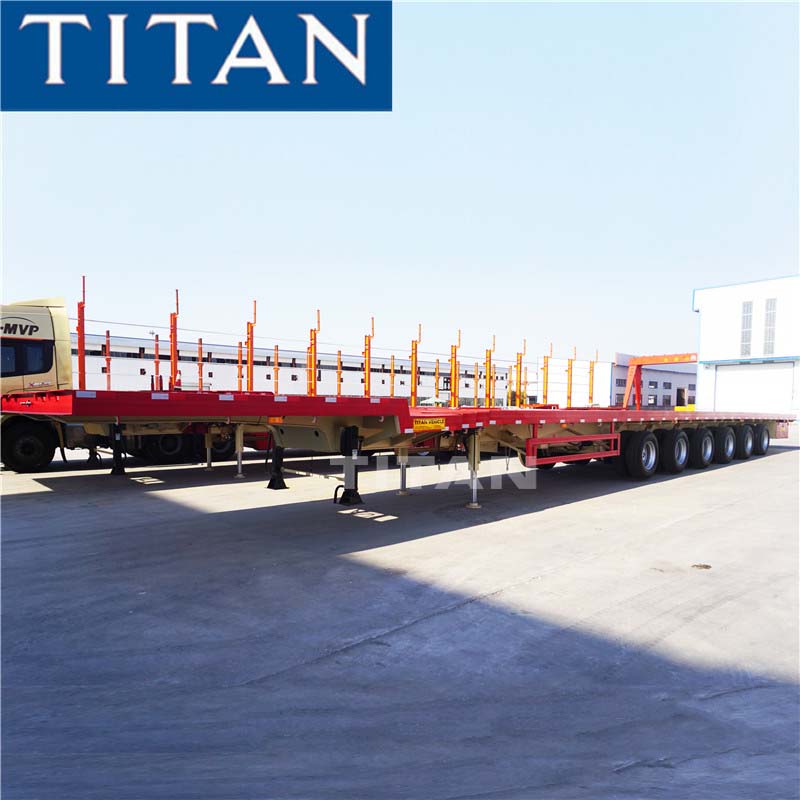

6 axle 62m Telescopic Trailer for sale

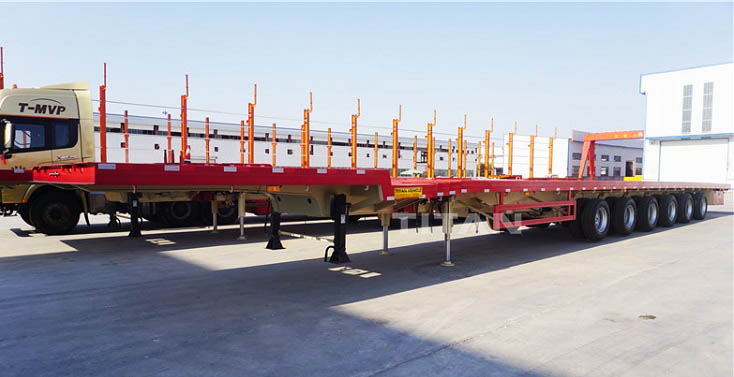

62m Telescopic Trailer for Windmill Blade

Telescopic Trailer for Windmill Blade Transport

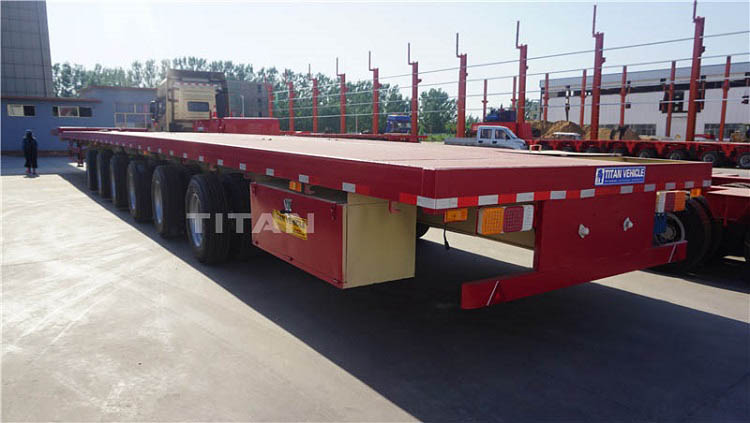

62m Telescopic Trailer for Windmill Blade

wind turbine blades for sale

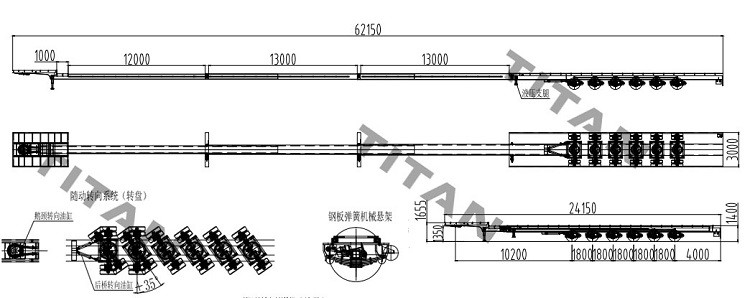

Windmill Blade Transport Telescopic Trailer drawing

Windmill Blade Transport Telescopic Trailer drawing



Specification:

Brand: TITAN 62m Telescopic Trailer for Windmill Blade Transport

Closed length: 24150mmX3000mmX 1650mm

Total length: 62,000mm after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 6 axle

Suspension: Hydraulic suspension

Tire: 24 units

Braking system: WABCO emergency valve

Kingpin: 3.5 inch

Landing gear: JOST C200



62m Telescopic Trailer for Windmill Blade Transport details display video

62m Telescopic Trailer for Windmill Blade Transport

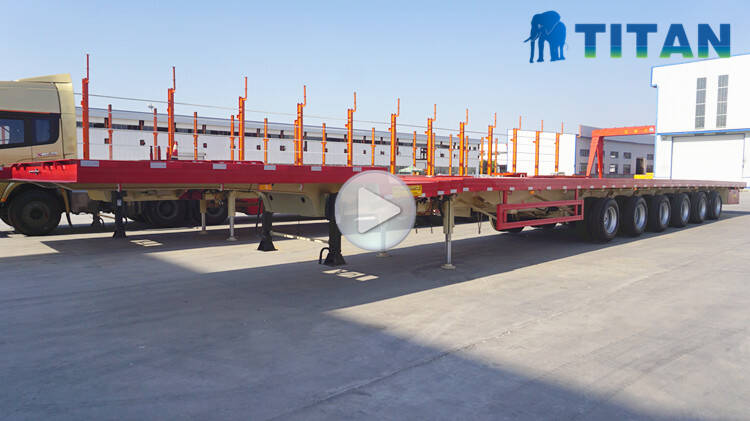

wind turbine blade transportation extendable trailer

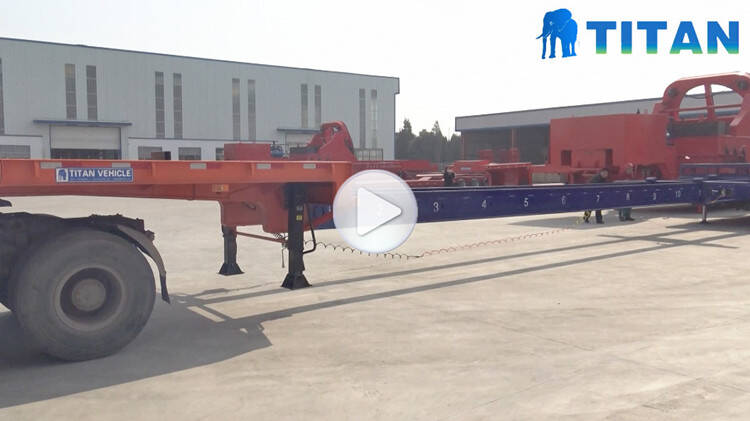

                          wind blad trailer testing

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
