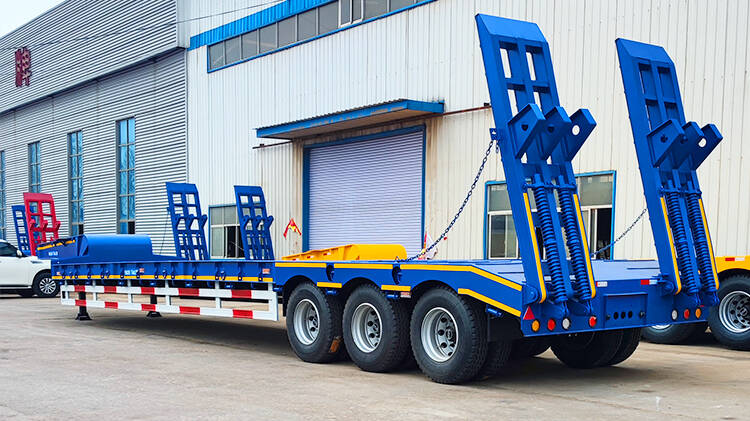

This 3 axle drop deck trailer dimension is 13000m*3000*1700mm.
This drop deck trailer is mainly used for transporting heavy equipment and goods such as excavators, bulldozers, road repair equipment, large stones and wood. This model can bear up to 80 tons.
3 Axle Drop Deck Trailer for Sale in Nigeria
3 Axle Drop Deck Trailer for Sale in Nigeria
1. The body of the drop deck trailer is low and close to the ground. Make the drop deck trailer easier to load and unload the materials needed for transportation.
2. The main function of the drop deck trailer is to allow the transportation of higher cargo or equipment.
3. Another advantage of the drop deck trailer's low center of gravity is that it is very stable during the process of carrying heavy objects, and it is not easy to cause bumps and damage the goods.
Model: 3 Axle Drop Deck Trailer
Dimension: 13000*3000*1700mm（depends on final design）
Capacity: 80T
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
King Pin: JOST 2.0inch or 3.5inch
Landing Gear: Chinese Standard 28tons or JOST
Spring: 10pcs,16mm thick, 900mm wide
Through this videos, you can learn about different types of drop deck trailers, as well as the process, testing, packaging and customer feedback, etc.
You can also click "TITAN Drop Deck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
