3 Axle 42000L Diesel Fuel Trailer for Sale
3 Axle 42000L Diesel Fuel Trailer for Sale

3 Axle 42000L Diesel Fuel Trailer for Sale

TITAN VEHICLE is a professional manufacturer which have fuel trailers , fuel trailer tanker, diesel fuel trailer for sale for about 20 years, with rich experience and provide customers with the best quality tank truck solutions.

Description of Diesel Fuel Trailer Tanker

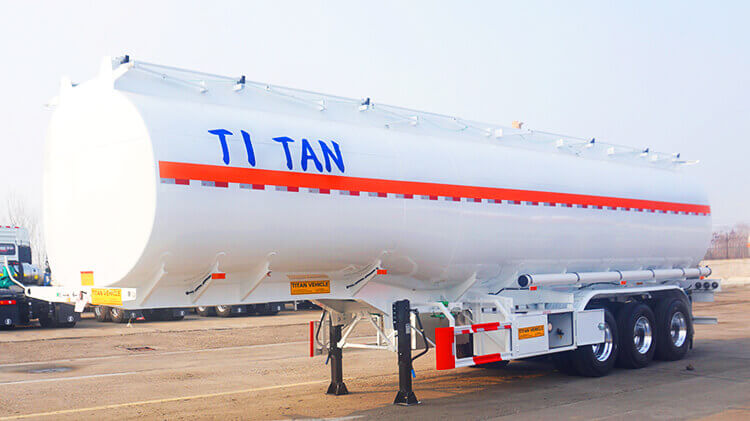

This model is 3 axle 42000l fuel trailer tanker.

It is mainly used for transporting many different kinds of liquids, such asdiesel, gasoline, edible oil and chemical liquids, etc.

The liquid will generate huge tension and impact during transportation, so the tank must be strong enough.

3 Axle 4200 L Diesel Fuel Trailer for Sale | Fuel Trailer Tanker

3 Axle 42000 L Diesel Fuel Trailer for Sale | Fuel Trailer Tanker

3 Axle 4200 L Diesel Fuel Trailer for Sale | Fuel Trailer Tanker

3 Axle 42000 L Diesel Fuel Trailer for Sale | Fuel Trailer Tanker

3 Axle 4200 L Diesel Fuel Trailer for Sale | Fuel Trailer Tanker



Advantages of Diesel Fuel Trailer Tanker

1. TITAN fuel trailer tanker’s body uses the most advanced longitudinal welding technology, which reduces the number of tank weld seams and improves the overall robustness of the tank body by more than 20%. The tank body adopts the professional canning technology and make it forms at one time. Greatly increased the strength of the tank body. If accidentally collided , the tank will not crack. To ensure the safety of the tanker and increase the service life.

2. Regards the appearance of oil tank, we use polyurethane paint, the vehicle has been sandblasting for several times, spraying anti-rust paint, spraying primer, spraying top paint, totally three layers of paint spraying, so that the paint will not fall off for more than five years.

3.  As for the discharging valve, you can choose to put it on the left or right side. It can also be divided intocompartment, such as three compartments, four compartments and so on. And we will equip you with bottom valves in each compartment.



Specification of Diesel Fuel Trailer Tanker

Model: 3 axle 42000l Fuel Trailer Tanker

Dimension: 11100mm*2500mm*3800mm (the exact size depends on the final design.)

Volume: 42m3

Tank Body Material: 5mm carbon steel

End plate: 6mm carbon steel

Manhole Cover: Carbon steel

Bottom Valve: Aluminum API Pneumatic Bottom Valve

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Color: Optional

Axle: 3 axles, 13T

Kingpin: 2.0 or 3.5 inch

Suspension: Mechanical suspension

Leaf Spring: 90(w)mm*13(thickness)*10 layers



Through this videos, you can learn about different types of fuel trailers tanker, as well as the process, testing, packaging and customer feedback, etc.

3 Axle 42000 L Diesel Fuel Trailer for Sale | Fuel Trailer Tanker

You can also click "TITAN Fuel Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
