60 Ton Low Bed Truck Trailer is exported to Togo

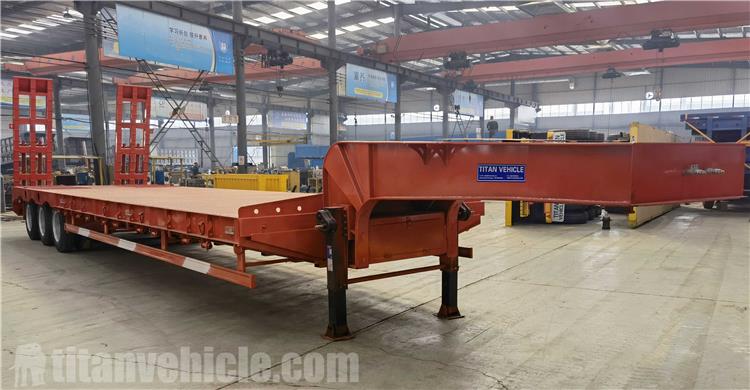

60 Ton Low Bed Truck Trailer is exported to Togo60 Ton Low Bed Truck Trailer for Sale In Togo

Thanks to our Togo customer for choosing TITAN. We will always provide you with the best good quality low bed truck trailer. And our low bed truck trailer will not disappoint you. Customers mainly transport large equipment such as excavators. Our 60 ton low bed truck trailer for sale can fully meet his needs. Here is the final configuration as confirmed by the customer.

The bottom plate of the car is a 5mm thick tread plate, which is thicker than the 4mm bottom plate on the market. The checker plate can also increase the friction between the cargo and the bottom plate, so that the cargo can be more stable.

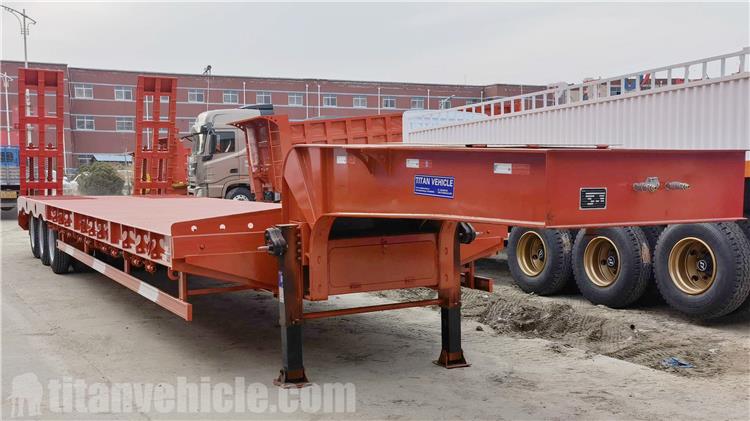

60 Ton Low Bed Truck Trailer is exported to Togo60 Ton Low Bed Truck Trailer for Sale In Togo

The girders of the low bed truck trailer are made of Q460C high-strength manganese steel. This steel has good toughness, its bearing capacity is 5 times that of a trailer made of Q345 steel, and its service life is more than ten years.

The top of the low bed truck beam is 20mm thick and 200mm wide, and the bottom is 20mm thick and 200mm wide. The middle height is 550mm and 14mm thick. The low bed truck for sale gooseneck has a downward pressure design, which can effectively prevent the low bed truck trailer from tilting its head when it is loaded, and it is easier to climb the slope.

The side beams of the low bed semi trailer are made of T700 high-strength steel, and the side beams of the low bed semi trailer are 300mm high, 140mm wide and 8mm thick "H" design. The bearing capacity is twice that of other steels, and it will not deform for 10 years.

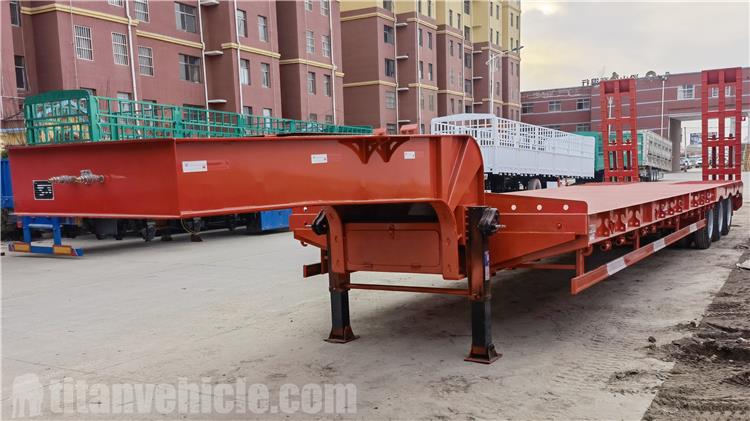

60 Ton Low Bed Truck Trailer is exported to Togo60 Ton Low Bed Truck Trailer for Sale In Togo

Moreover, double-layer vertical plates are used under the gooseneck to reinforce, so that the deformation amplitude will be relatively small when the lowbed truck trailer is overloaded.

We use a single piece of double web reinforcement for the tires of the Lowbed truck for sale.

The diagonal support of the low bed trailer truck effectively connects the girder and the side beam into a whole. The 60 ton low bed trailer truck uses 6mm thick high-strength steel. Moreover, at the welding place with the beam, we have set up a reinforced vertical plate, which can effectively prevent the deformation of the vertical plate caused by pressing down on both sides.

Low bed trailer truck can transport up to 40 tons. However, the load capacity can be increased by increasing the number of axles. The load capacity also depends on the axle model. Some customers will use more capable axles depending on the weight of the cargo being transported.

60 Ton Low Bed Truck Trailer is exported to Togo60 Ton Low Bed Truck Trailer for Sale In Togo

The diagonal support of the side beam of the low bed trailer truck is a 6mm thick manganese plate, which adopts the "H" shape high-strength steel welding process, and there is one every 50cm.

In general, the manufacturer can configure 13, 16, 18, 20-ton axles according to the customer's transportation needs, so the low bed trailer truck can be customized according to the requirements of the type of goods.

One of the benefits of using a low bed trailer truck is that it is cost-effective. Trailers are cheaper than other heavy-duty trailers. Another advantage is the longer cargo platform. The rear half of the low bed trailer truck can be used as a cargo platform.

60 Ton Low Bed Truck Trailer is exported to Togo60 Ton Low Bed Truck Trailer for Sale In Togo
