100 -120 Ton Low Bed Truck is ready to ship to Ghana

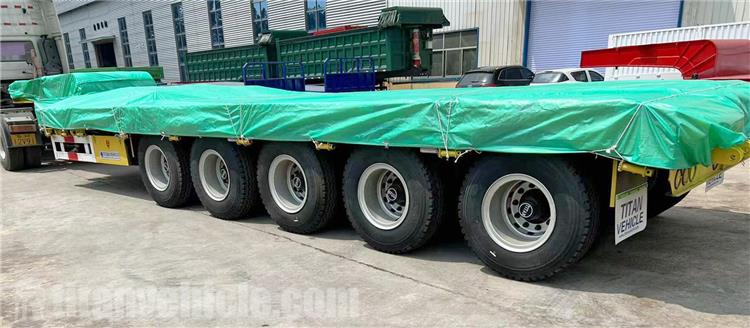

5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema

This customer asked us about the price of low bed truck in TITAN before, but because of the price of TITAN products, the customer finally chose to buy second-hand low-bed trailers, but the use effect was not good. So this time, he decided to choose TITAN.

As the largest semi-trailer supplier in China, the quality of its products is more guaranteed. Communication with our sales manager Shawn was also very efficient and easy. Because we fully understand the needs of our clients and are already very experienced.

We confirmed the height, length and width of the cargo bed of the 5 axle 100 ton low bed truck according to the needs of the customer, and soon the customer placed an order with our company.

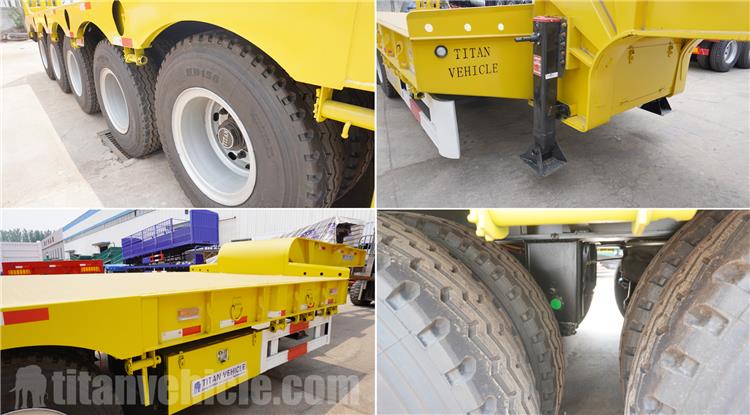

5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema

Before production, TITAN technical department must first design and produce drawings according to the needs of the user and the market, so that the technical parameters of the main trailer are matched, and then transferred to the manufacturing department.There are dimensions and specs drawing of different types low bed truck trailer. You can learn more details in the pictures.

Low bed truck are widely used, mainly for medium and long-distance freight transportation. Its frame is a beam-through structure, and the longitudinal beam adopts a straight and live gooseneck type. The height of the webs ranges from 400mm to 550mm, the longitudinal beams are welded by automatic submerged arc welding, the frame is shot blasted, and the beam penetrates the longitudinal beams and welds the whole.

Low bed truck for sale use high-strength international steel material, the vehicle has lightweight, and guarantees its anti-torsion, anti-vibration, anti-bump ability, and meets different load bearing capacities.

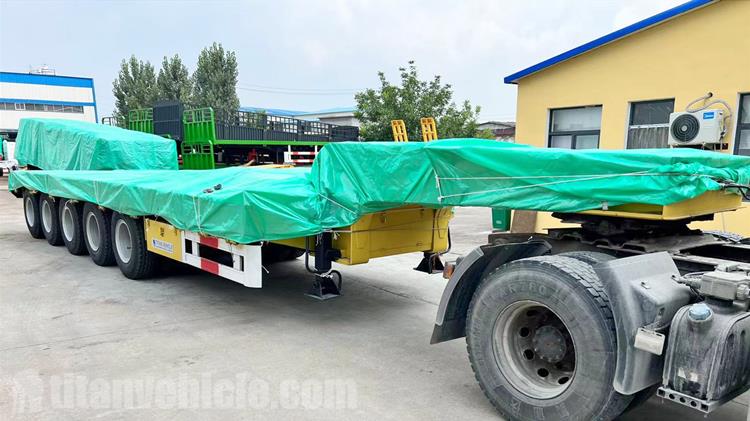

5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema

Composed of the tandem dry plate spring and suspension support, the structure is reasonable, with strong rigidity and strength, used to support the load and buffer the impact. 100 ton low bed truck are usually used to transport heavy vehicles, such as tractors, buses, and special vehicles.

Rail vehicles, mining machinery, forestry machinery, agricultural machinery. And other heavy-loaded goods, the lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high goods and pass overhead obstacles.

When loading mechanical equipment on low bed truck price, the mechanical equipment is usually loaded from the rear of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi trailer.

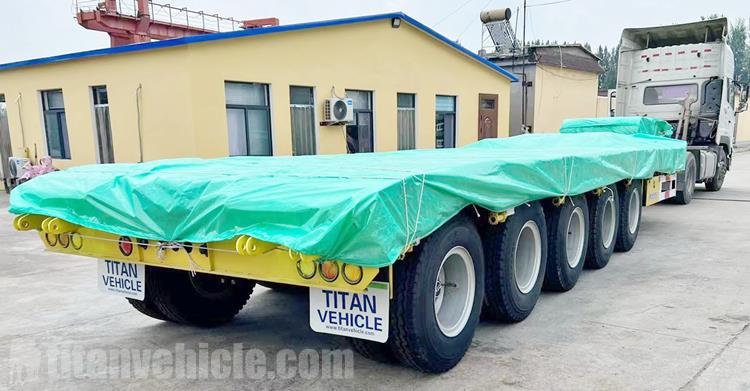

5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema

As a professional manufacturer, TITAN has provided many low bed trailers for many countries. We have much more advantages on the low bed trailer’s cost and quality control. Material and suspension (single point and air suspension) are optional.TITAN 100 ton low bed truck have different capacities, such as 20 tons, 30 tons, 50 tons, 70 tons, 80 tons and 100 tons, 120 tons. Each type uses a different number of axles from 2, 3, 4 axles to 7, 8 axles.

Mechanical ramp: A manual mechanism or a spring is used to lift the ramp to the right height. Low bed truck mechanical ramp is cheap and easy to maintain.

The most common low bed truck manufacturer's height is 125cm. The low plate height purchased by African customers is 90cm, 100cm, 125cm, 130cm, and the minimum height can be 65cm.

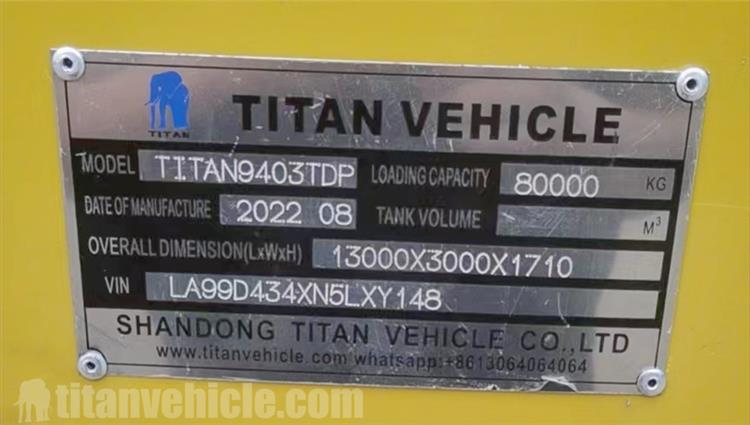

5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema5 Axle 100 Ton Low Bed Truck for Sale In Ghana Tema
