Different types of semi trailer tipper - What is dump trailer?

TITAN VEHICLE | 2020-04-27
Different types of semi trailer tipper - What is dump trailer?



Due to different work requirements and different work sites, the choice of products is also different. Choosing a correct semi tipper trailer model will also improve work efficiency. Below we will provide you with different dump truck models:



What is a tipper semi trailer?

TITAN Tipper trailer can be used in many other fields such as construction, agriculture, etc. They have different shapes and types, which are divided into side tipper trailer and rear tipping trailer.skeleton dump trailer, and flatbed type tipping trailer.

Hydraulic dump trailer can be customized from 15 tons to 80 tons, 80 tons to 120 tons,  120 tons-180 tons of different tonnage according to the different cargoes. The common volumes are 30 cubic meters, 32 cubic meters, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.

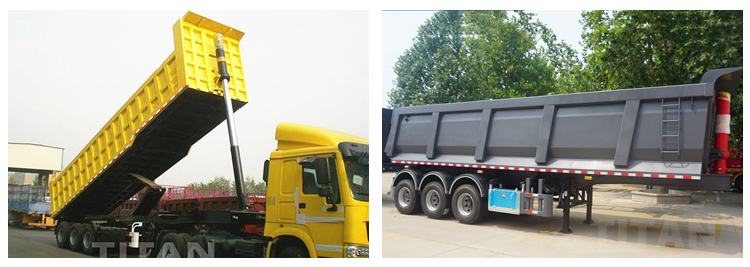

1> Semi tipper trailer:

Dump trailers will help you move and unload bulk cargo in a very simple and effective way. Especially when dealing with large jobs. Through carefully designed unloading mechanism, operation safety can be well maintained.

Rear dump trailers are also called rear dump trailers. They are usually used to carry building materials such as sand, stones, ore, and scrap iron.

Lifting principle: The tractor gearbox uses an external power take-off to pressurize the hydraulic oil pump. The hydraulic oil pump controls the hydraulic oil pressure to achieve the lifting or lowering of the hydraulic cylinder. Generally, it can be fully lifted in 30 seconds to achieve unloading.

It is important to note that the length of the dump truck trailer cannot exceed 12m. Because the roadbed is not hard enough, the longer it is, the easier it is to overturn and cause the tipper semi trailer to be scrapped.



2> Side dump semi trailer

The side tipper trailer is designed to fall sideways for a reason, and you may be forced to unload in areas where there is not enough space.

In this case, you can use side dump trailer to help save space. The load capacity of the side tilted dumper may be greater than that of the rear tractor tipper trailer.

Side tipper is suitable for large workplaces, its maximum carrying capacity can reach 80-100tons. Its body length can be 8 meters to 12 meters, according to customer needs.

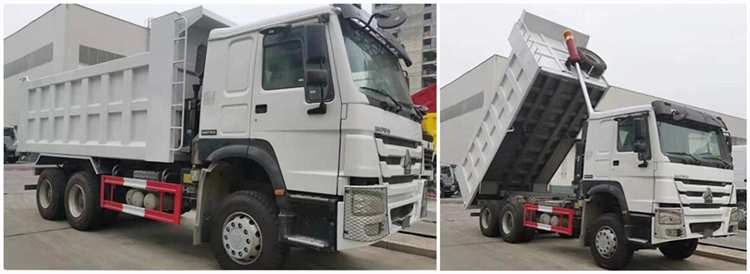

3> Dump truck:

1. Mine place: According to your requirements, the engine can choose 290 ~ 420hp. Choosing a short wheelbase improves the strength of the frame and the passability of the vehicle. For the self-unloading system, you can choose mid-top or front-top.

2. Urban buildings: These dump trucks usually drive on urban roads with a travel distance of less than 200 km. 336hp or 380hp engine power is the best choice. Choose 6X4 or 8X4 tractor according to the load capacity.

3. For transportation distances over 200 kilometers, it is best to use 8X4 to load more goods.

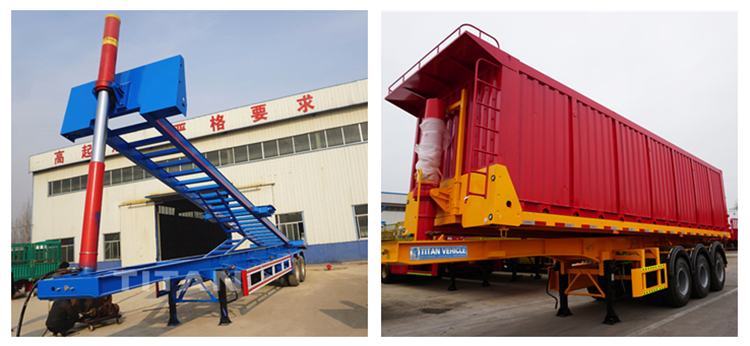

4> Flatbed and skeleton tipper trailer:

Tipping chassis semi trailer and flatbed dump trailers have many uses, and it can transport 20ft and 40ft containers. Container flatbed dump trailers have 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

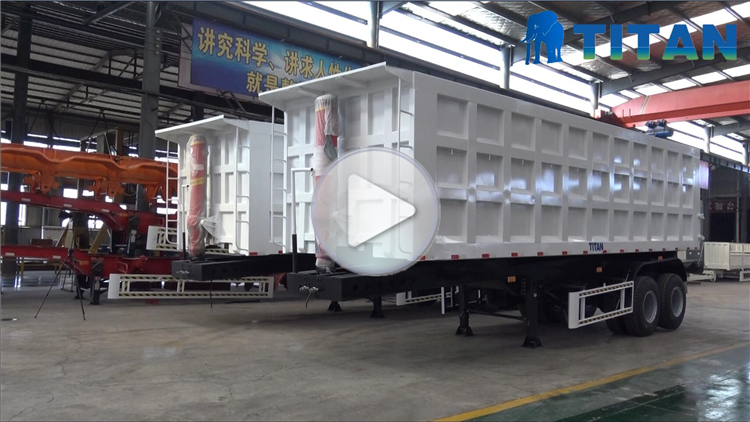

Through the video below, you can learn about different types of tipper semi-trailers(like 2 axle dump semi trailers, 3 axle tipper trailer, U shape tipper semi trailer, tipping chassis semi trailer, flatbed dump trailer)

And the process, testing, packaging and customer feedback, etc.



Welcome to click “Technology“, you can get more article about our trailers.



Click “Tipper Semi Trailer“, you can find your favorite dump semi trailer.



If you have any questions, you can leave your inquiry in the message box below. Thanks!
