Low bed trailer
Low bed trailer

Low bed trailer

80 Ton Lowbed Trailer



TITAN 3Axles 80t low bed trailersare very strong lowbed trailers and with the strength and durability to meet the transport needs. We use high strength steel material for the lowbed trailers, specially for the main key stress point, the 3axles lowbed trailers, the load can be up to 80 ton payload, to ensure the capacity of low bed trailer. We adopt famous brand parts, like WABCO braking valve, German famous brand, Improve the system's reaction sensitivity and stability, More Safe.





TITAN Low bed trailer adopts 550mm main beam, effectively increase the loading capacity by 20% more than ordinary trailer which uses 500mm main beam, ensuring the main beam resistance to twisting forces, shocks and bumps;and to meet load requirements on different kind of roads.



  • Transport 60-80 TON

  • Heavy spring suspention

  • 3 units Axles, FUWA brand, also BPW axles are available

  • Height of the working platform: 850mm-1200 mm

  • Hydraulic ramp is an option for loading and unloading





Specification



Brand: TITAN 80 Ton Lowbed Trailer

Overall dimension: 13000mm X 2500mm X 2200mm

Loading capacity: 80 ton

Axle: 3 axles, 14t, 16t, 20t

Suspension: Heavy duty mechanical spring suspension

Tire: 12 units

Landing gear: JOST

Brake system: WABCO

King pin: 90#

Electical system: 24V, LED lights

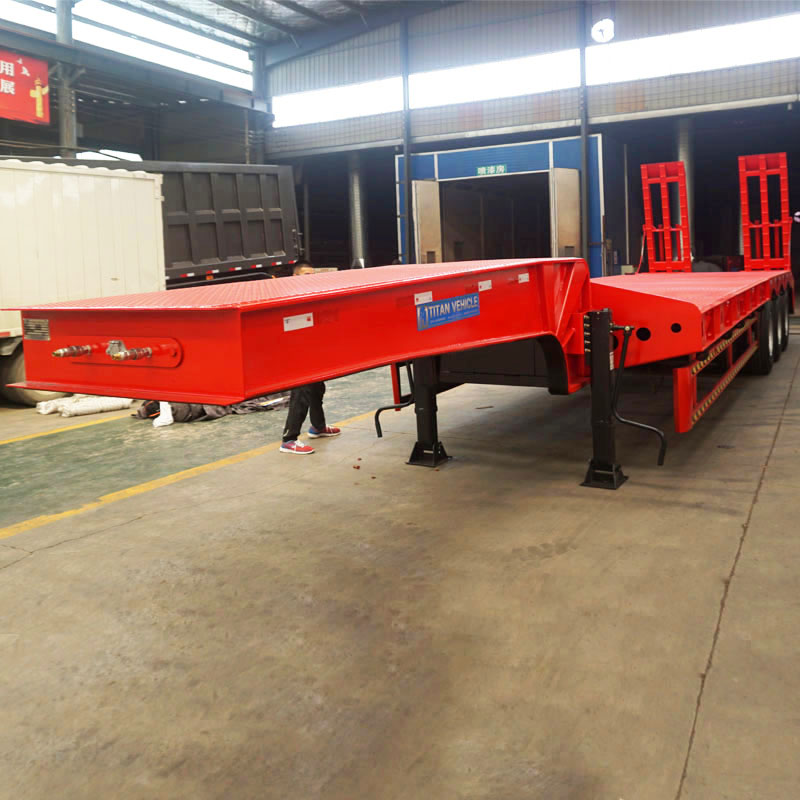

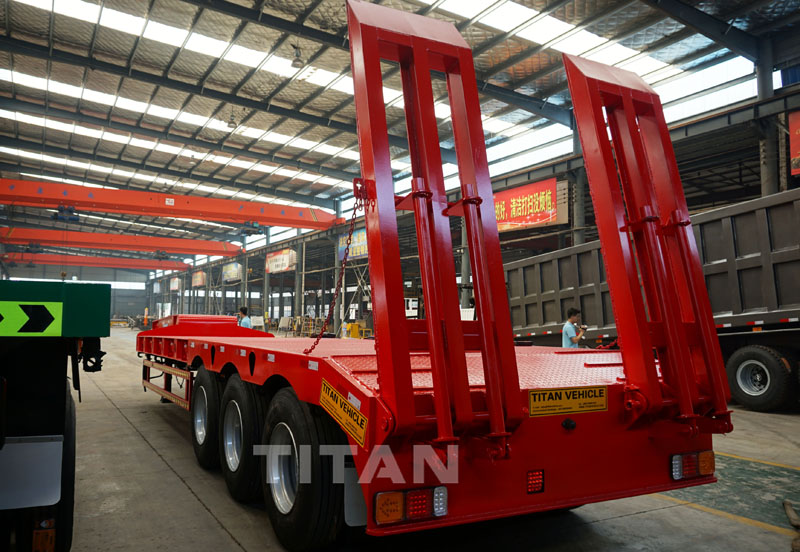

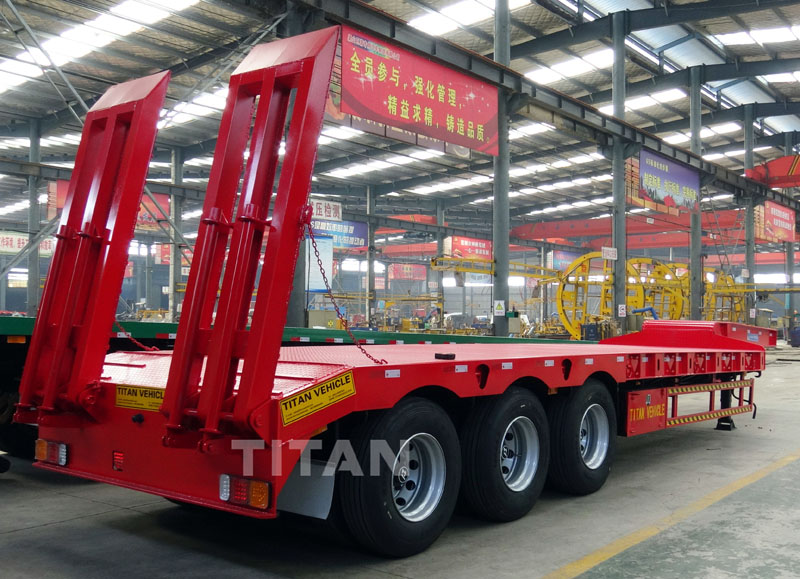

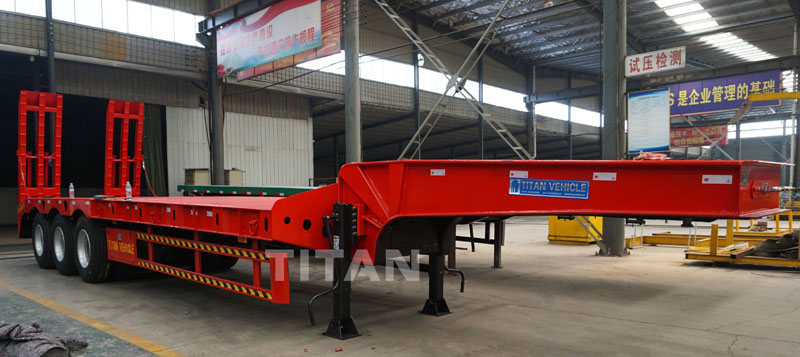

80 Ton Low loader Trailer

80 Ton Lowbed Trailer 3 axles -www.titanvehicle.com

80t lowbed trailers

80 Ton Low loader Trailer -www.titanvehicle.com

80 Ton Low loader Trailer

tri-axle lowbed trailer for sale -www.titanvehicle.com
