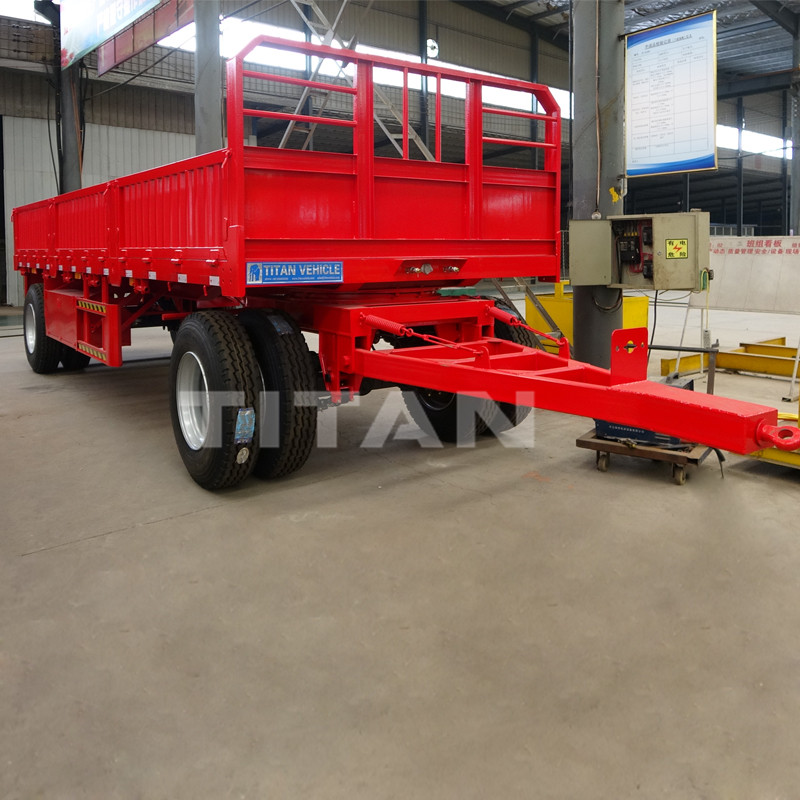

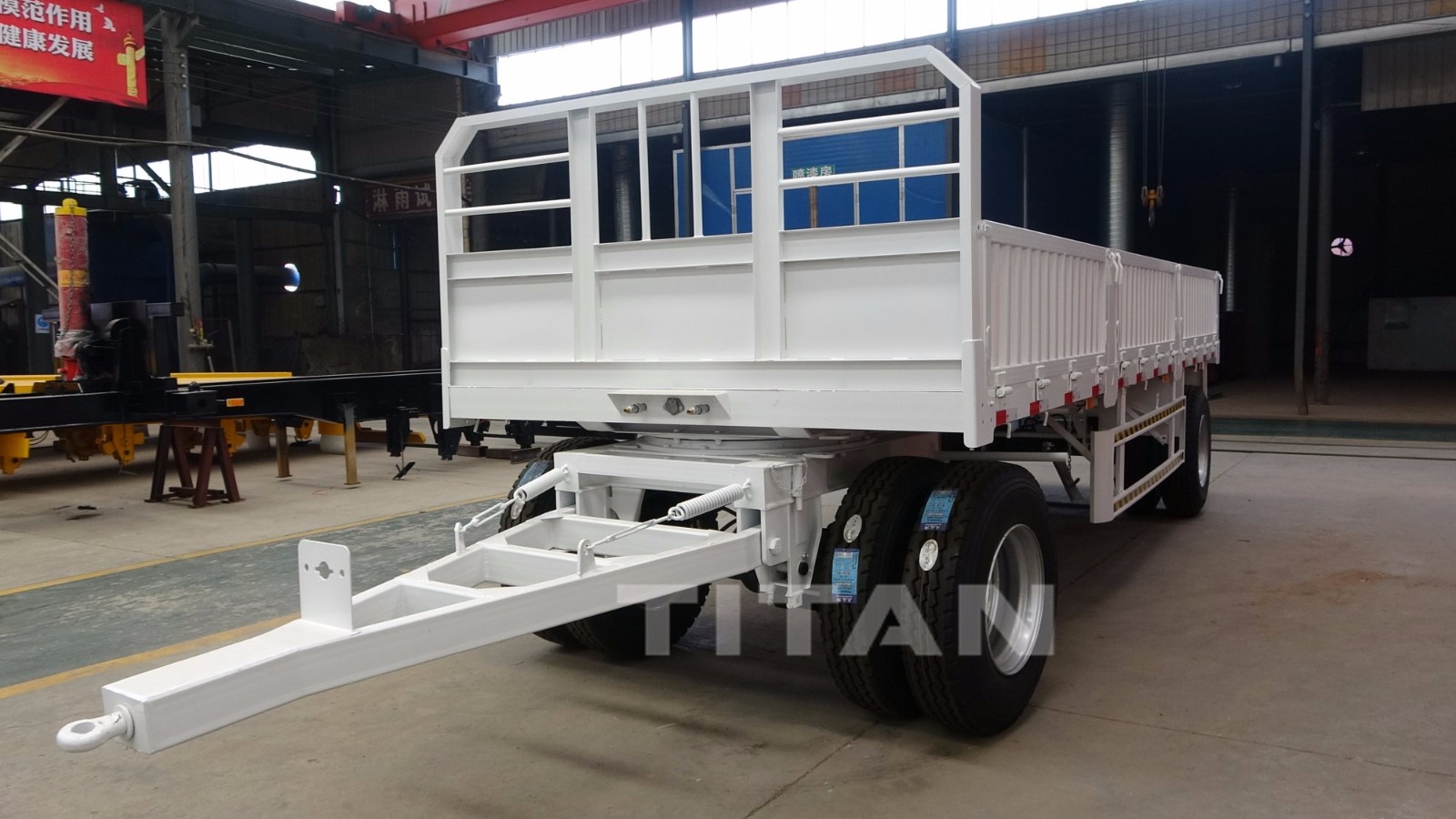

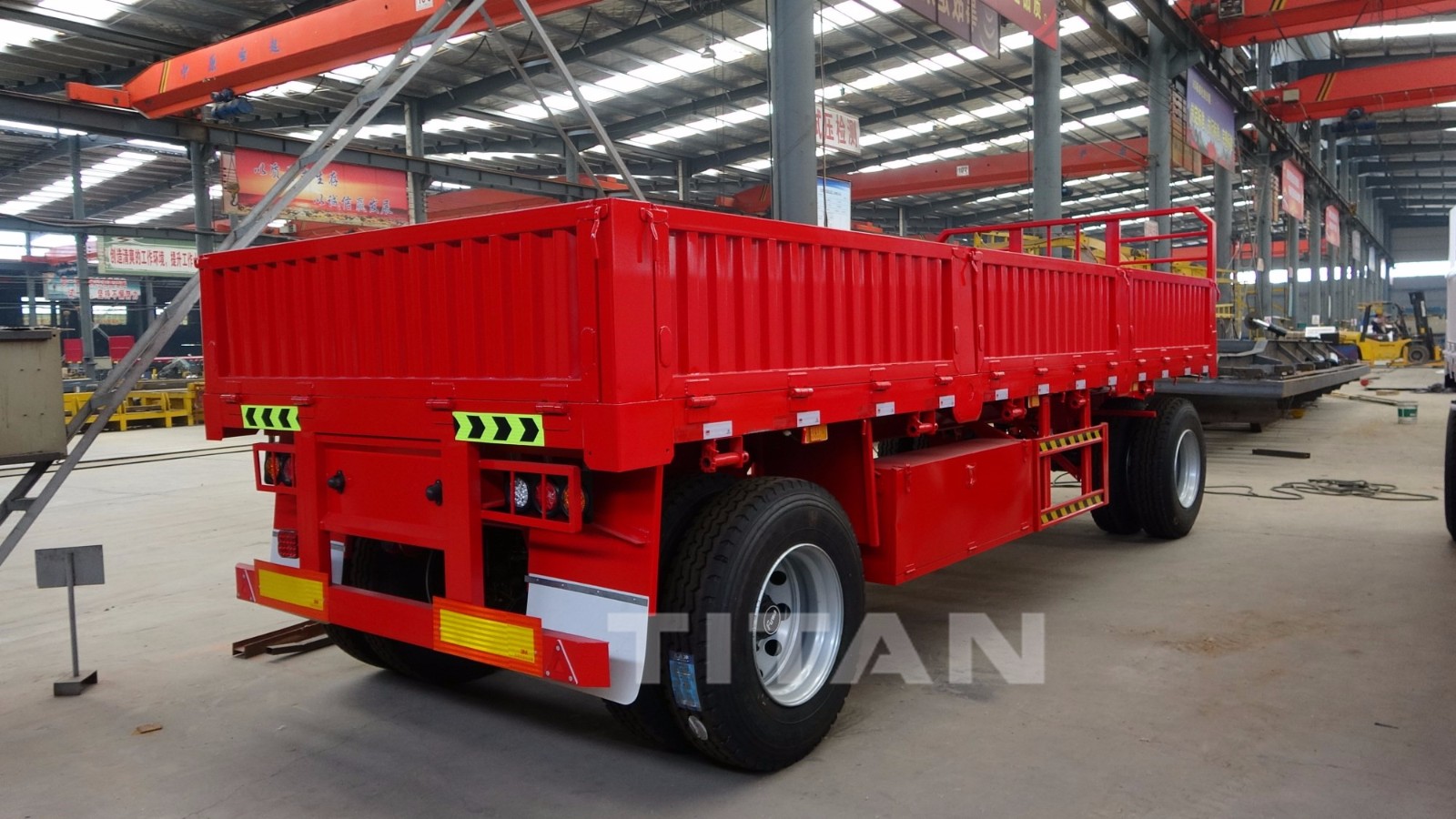

Drawbar sidewall semi trailer
Drawbar sidewall semi trailer

Drawbar sidewall semi trailer

2 axle drawbar side wall semi trailer trailer Side Board drawbar vehicle


TITAN provides high quality drawbar side wall semi trailer is a specialized for carrying bulk cargo. all the key component and accessories of flat bed trailer with fence are purchased from qualified suppliers, so our flat bed trailer with fence are able to withstand a long time of use, exhibiting great strength.



Features - TITAN Drawbar Trailer



1. The frame of the Drawbar side wall semi trailer adopts the space frame structure of welding the longitudinal beam and the integral through type cross beam. It is outstanding in strength, rigidity, toughness and bearing capacity. Meanwhile, the frame won’t come out with permanent deformation.



2. The height of side wall can adopts 800mm and the height of fence is 300mm, the side wall without removing when carry the 40ft 20ft containers.



3. TITAN Drawbar side wall semi trailer adopts excellent brake effects.the axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.



4. TITAN Drawbar side wall semi trailer adopts premium steel material, advanced technology and strict production to our semi-trailer. The trailer chassis automatic submerged arc welding to ensure the welding seal solid.





Specification of drawbar side wall semi trailer



Dimension: 7900mm*2700*1600mm

Loading capacity: 10~30 ton

Side wall: 600mm, 800mm, 1000mm

Axles: 2X14 ton TITAN

Tire: 12R22.5, 8 units

King pin: 90# JOST

Landing gear: JOST C200

Brake system: WABCO Valve and relays/ABS

Suspension: Mechanical Spring Suspension

Container lock: 4units




Drawbar sidewall semi trailer







Drawbar sidewall semi trailer



Drawbar sidewall semi trailer



Drawbar sidewall semi trailer







If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!



We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !



Orders for ready-made or custom-made trailers are welcome!
